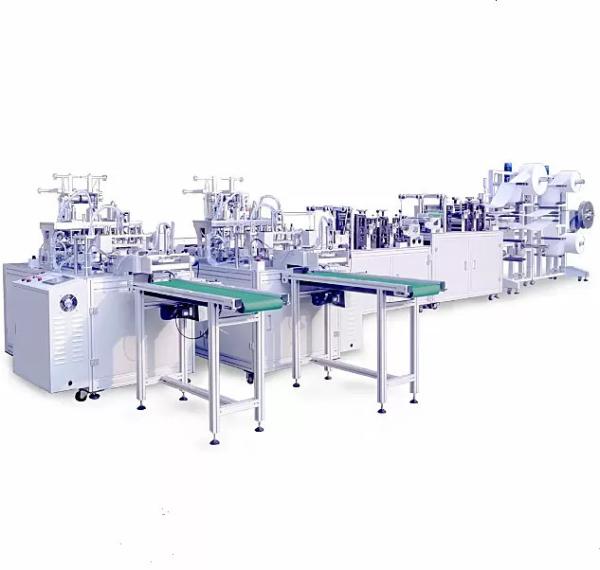

Medical Grade Heavy Duty Face Mask Making Machine Light Weight 3 Layer PP

Equipment characteristics

• The machine adopts aluminum alloy structure, small size, stable operation and low scrap rate;
• With photoelectric detection, automatic counting, can control the production speed and high output;
• It can produce about 100 pieces per minute, and can produce (3-6 layers) multi-layer masks.
• You can adjust the size of the mask blank and the folding location.
• The whole line include face mask blank making machine and outside earloop welding machine

Equipment Features

• Automatic tension control of raw materials to ensure the balance of tension of raw materials;
• Photoelectric detection of raw materials to reduce the waste of materials, plus voice-activated alarm and stop;
• The equipment is enabled total quantity counting and single-stack counting, which is convenient for the post-process connecting to the sterilization packing line;
• Modular/humanized design for easy maintenance;
• The whole machine is made of aluminum alloy, sheet metal and chrome-plated steel. It is good-looking, durable and anti-rust, causing no pollute to the environment.
• Full servo action is adopted in the ear-loop welding to achieve energy-saving and high-speed;
• The entire production line requires two operators, one is responsible for the operation of the machine and the replacement of the raw material rolls; another is responsible for collecting the finished product mask and arranging the boxes in an orderly manner; the person supervising the machine can take care of multiple machines at the same time.

Main electrical parts:

1. To meet the requirements of product specifications: This equipment suits for producing adult ear belt mask under 4 layers (without edge sealing). The size of the mask is 175mm * 95mm;
2. The following raw material specifications are recommended:
3. PP spunbond PPSB: 200mm * 36g, melt-blown: 195mm * 28g, PP spunbond PPSB: 195mm * 18g, nose wire: single-core universal type
4. Technical specifications:
5. Model No.: SX-921S (High-Speed Servo Welding Flat Ear-Loop Mask Machine)
6. Machine Dimensions: 4,210mm long * 2,280mm wide * 1,985 high
7. Total weight of machine: about 2300 KG
8. Mask specifications: 175mm * 95mm (for adult)
9. Production speed: over 85pcs/min (normal 5000/ h)
10. Power Source: Single-phase AC, 220V, 50HZ, 9.8KW
11. Gas source: 5-7bar (gas source up to 180L/ min)
12. Control mode: PLC control + touch screen operation


1. Equipment installation and configuration requirements
2. Equipment size: 4200mm (L) x 1100mm (W) x 2200mm (H);
3. Equipment weight: 1600 KG
4. Working voltage: AC220V, 50 / 60HZ, rated power: 4KW
5. Compressed air: 0.5-0.7Mpa
6. Use environment: temperature 10-35 ℃, humidity 5-35% HR, no flammability, corrosive gas, no dust (cleanness not less than 100,000)
